Yuyao Huangong automation instruments factory
$62≥5Others
| Min. Παραγγελία: | 5 |
| μεταφορά: | Ocean,Land,Air,Express |
| Λιμάνι: | ningbo |
Σκιά:

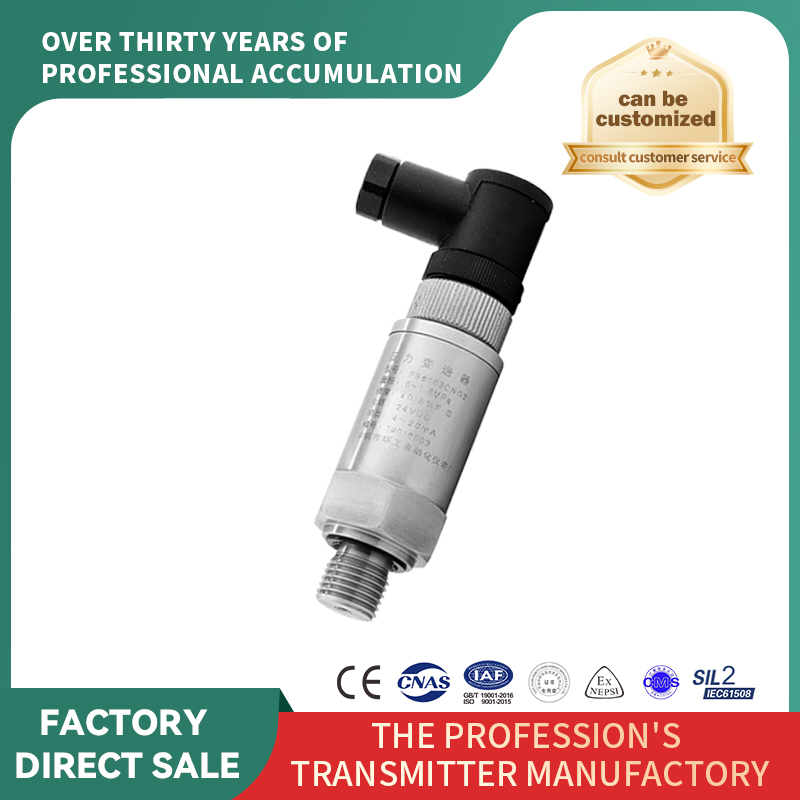

Αρ. μοντέλου: PB80
Αρ. μοντέλου: PB80
IP Rating: IP65
Response Time: ≤100 Ms
Power Supply: 24VDC (12~36VDC)
Output: 4~20mA, 1~5V, 0.5~4.5V, 0~5V
Power Consumption: <0.5W (When Power Supply Is 24VDC)
Transport Package: Carton Packing
Specification: PCS
Trademark: HUANGONG
Ικανότητα παραγωγής: 120000 Pieces / Year
Προσαρμογή: Available
Type: Remote Pressure Transmitter
Structure Type: Diffused Silicon Pressure Transmitter
Αποστολή: Επικοινωνήστε με τον προμηθευτή σχετικά με το φορτίο και τον εκτιμώμενο χρόνο παράδοσης
| Τύπος Πακέτου | : | Συσκευασία χαρτοκιβωτίων |
The file is encrypted. Please fill in the following information to continue accessing it
| Basic Error | 0.25% F-S; 0.5% F-S |
| Measuring range | 0~100kPa to 0~60MPa, negative range selectable |
| Linearity | Better than 0.5% F-S |
| Response time | ≤100 mS |
| Power supply | 24VDC (12~36VDC) |
| Output | 4~20mA, 1~5V, 0.5~4.5V, 0~5V |
| Load resistance | 0~600Ω (For 24VDC, 4~20mA output 2-wire) |
| Pressure Overload Limit | 1.5 times the maximum rated pressure |
| Ambient temperature | -20~85ºC |
| Measured medium temperature | -20~85ºC |
| Storage temperature | -40~+125ºC |
| Pressure connection | G1/4 (customizable) |
| Installation position | No limitation |
| Interface material | Stainless Steel |
| Power consumption | <0.5W (when power supply is 24VDC) |
| Electrical Interface | M12 or GX12 |
